EMI EL-SQRD Multi-Profile Tube and Pipe Processing Center

EMI EL-SQRD Multi-Profile Tube and Pipe Processing Center

Have one to sell?
1 (714) 253-4707
used@jpsint.com
ConditionNew
Have one to sell?

Overview

Type:
Tube Processing Machine
Manufacturer:
EMI
Model:
EL-SQRD
Condition:
Build To Order
Year:
2024
Stock #:
1177
Status:
For Sale

Description

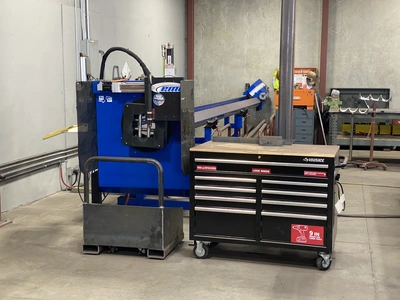

New Multi-Profile Machine Tube Processing Center.

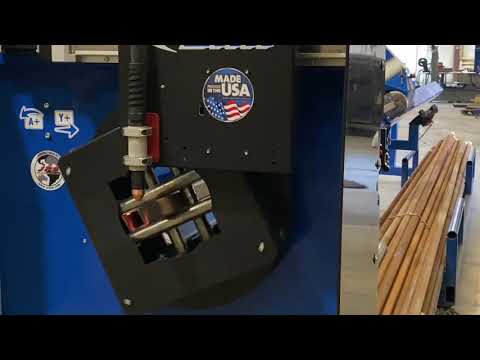

Plasma Cut Round, Square, Rectangle, Angle, Channel, and Flat bar, all on one machine!

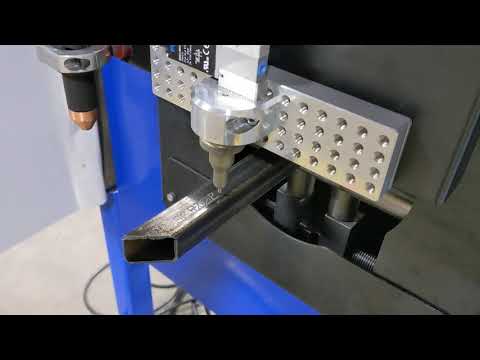

Miter cut, profile, and cope round and square materials up to 4.5” and up to 15 lbs/ft* by 24ft long, such as handrail. Burn holes, squares/rectangles, and slots all in one efficient process, reducing or eliminating costly manual measuring, sawing, drilling, and grinding.

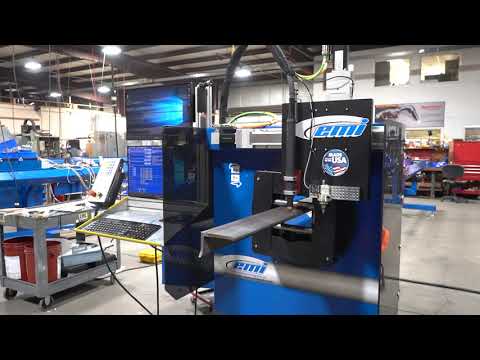

With this machine, you will be cutting production parts within an hour of it hitting your floor.

Enjoy the speed of automating your metal-fab department for a very modest investment with the TPC 2444 EL-SQUARED.

Cutting Capacity (Round)¾” to 4” Sch 80 at 15 lbs/ft¾” to 4” Sch 80 at 15 lbs/ft
Cutting Capacity (Square)¾” to 4” Sch 80 at 15 lbs/ft¾” to 4” Sch 80 at 15 lbs/ft
Cutting Capacity (Angle)4”x 4”x 1/2” or 13 lbs/ft4”x 4”x 1/2” or 13 lbs/ft
Cutting Capacity (Rectangle)¾” to 4” Sch 80 at 15 lbs/ft¾” to 4” Sch 80 at 15 lbs/ft
Cutting Capacity (Channel)4”x 4”x 1/2” or 13 lbs/ft4”x 4”x 1/2” or 13 lbs/ft
Cutting Capacity (Flat Bar)4”x 4”x 1/2” or 13 lbs/ft4”x 4”x 1/2” or 13 lbs/ft
Amps20 amps20 amps
Power Requirements220VAC 1ph220VAC 1ph
ControlCNC (Centroid CNC Control)CNC (Centroid CNC Control)
Dimensions27’x 4’x 6’27’x 4’x 6’
Weight2,400lbs2,400lbs

Material Shape - Round, Square, Rectangular, Angle Iron, C-Channel, FlatBar
Maximum Work Length - Loading: 24’ and Unloading: up to 8’
Material Diameter - Round, Square, Rectangle: ¾” to 4” Sch 80 at 15 lbs/ft
Angle Iron, C-channel, Flat bar: 4”x 4”x 1/2” or 13 lbs/ft
Axis Travel - X lengthwise: 296”, Y crosswise: 9”, Z up/down: 7” A, U: continuous rotation
Height of Chuck Center - 46”
Maximum Material Thickness - Up to ¾”
*changes with torch selection*
Rapid Travel Speed - X axis: 1200”/min *configurable* Y, Z axis: 500”/min, A, U, axis: 21,600°/min
Electrical Requirement - Control: 20 amps 220VAC 1ph
Torch: as per Hypertherm selection
Air Requirement - Control: 180 SCFH* with chiller
Torch: as per Hypertherm selection
Installation Dimensions - Minimum WxDxH: 6’x 38’x 7’
CNC Type - Centroid
CPU - 64 bit
Display Screen - Single 20” LED
Number of Control Axes - 5
Servo System - Closed Loop Servo
Program Input System - Conversational and G-Code

Centroid CNC Hickory controller
Closed Loop Yaskawa Servo System
Dual Screen Monitor Station with keyboard/mouse
High-Temp Chassis/SSD Industrial PC/Windows IOT OS
Industrial Grade
WIFI/USB/Ethernet connections
Manual 4-Jaw Chuck
Air-Blast
Three Automatic Material Supports
Hypertherm 45amp* with Torch/CNC Interface, and a selection of Torch Consumables.
