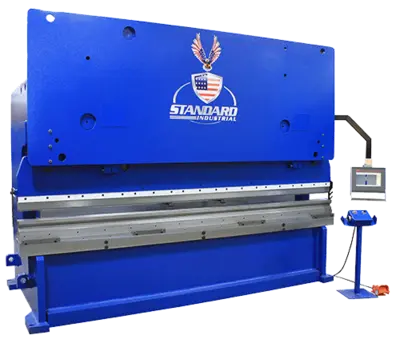

The Standard Industrial brake is specifically designed for a wide range of applications, ensuring optimal performance and versatility. Some of its key features include:
- Full-length bends: The brake delivers full tonnage across the bed, resulting in precise and accurate bends.
- Off-center loading: It provides the necessary tonnage across the bed, even when the load is not centered.
- Center loading: The brake offers the required tonnage for center-loaded applications.
- Multiple die set-ups: It accommodates varying tonnage requirements for different die set-ups across the bed.
- Punching applications: Each brake is equipped with a counterbalance valve to minimize shock to the hydraulic system during punching, whether in a single area or at different locations across the bed.
- Short piece work: With its impressive ram speeds, the brake ensures quick, easy, and precise completion of small piece work.
- Suitable for any size facility: From smaller facilities that focus on piece-by-piece work to high-production manufacturers operating three shifts a day, the Standard Industrial brake caters to diverse needs. It offers dependability, low maintenance, and readily available components to minimize downtime.
Invest in the Standard Industrial brake for reliable performance, regardless of the scale or demands of your facility.
Shipping Weight - 49,000 lbs
Forming / Punching - 325 / 215 Tons
Bed/Ram Length - 12 ft
Between Frames - 10'-5"
Open Height - 16 in
Stroke - 8 in
Closed Height - 8 in
Throat Depth - 10 in
Features Include:
★ Off The Shelf, Readily Available from Your Local Suppliers
★ 5 Year Parts Warranty + 5 Year Limited Onsite Labor Warranty
★ Groove in Bed and Ram Clamps for American Style Tooling
★ Perfect for full length and off-center loading applications
★ Full Tonnage across Bed and Ram
★ Full Tonnage throughout Stroke
★ Simple limit switch ram control (CNC optional)
★ Counterbalance for Punching applications
★ UL508A compliant
★ Typical +, - .001” Repeatability
★ Lifetime Telephone Support at No Charge
★ (2) 24” Work Support Arms
★ Manifold centralized lube system
★ Hand/Foot sequence w/footswitch
★ T-slot across front edge of brake bed
