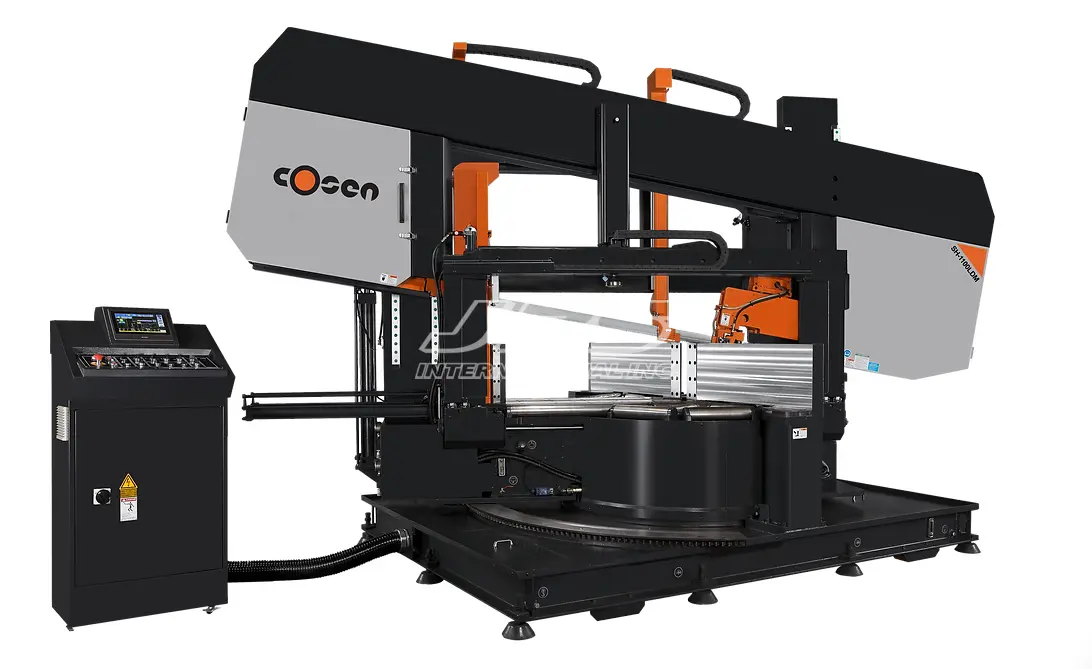

Cosen SH-1100LDM Semi-Automatic Double Mitering Horizontal Band Saw
Horizontal Dual Column Band SawsThe SH-1100LDM is a high-capacity dual-mitering horizontal column band saw that offers exceptional performance. This saw can make miter cuts both forward and backward at an angle of up to 60°. Its specialized 10° blade cant is designed to provide optimized cutting conditions for structural steel, including H-beam, I-beam, channel, and profiles. Experience precise and efficient cutting with the SH-1100LDM.
Max Profile Width | 44" |
Max Profile Height | 26" |
Blade Size | (LxWxT) - 33' 2" x 2.625" x 0.063 |
Saw Blade Motor | 15 hp |
Power Requirements | 460V, 3 PH, 60 Hz |
Weight | 24,200 Ibs |
Capacity Angle - (0 , +45, +60)
Round Capacity - (26", 26", 15.7")
Rectangular Capacity - (26" x 44", 26" x 27.6", 26" x 15.7")
Blade Speed - 50 - 393 FPM
Blade Size (LxWxT) - 33' 2" x 2.625" x .063
Blade Motor - 15 HP
Coolant Motor - 1/2 HP
Coolant Tank Capacity - 26 gal
Hydraulic Tank Capacity - 16 gal
Workbed Height - 33.5"
Weight - 24,200 lbs
Floorspace (LxWxH) - 191" x 193" 134"
Features Include:
★ 10° blade cant for cutting large structural material
★ Four large 2″ linear rail column design
★ Hydraulic power gear-driven rotating mechanism
★ Hydraulic angle lock-down
★ Helical bevel direct drive gearbox
★ Inverter-controlled blade speed
★ Hydraulic clamping vise
★ 5.7″ HMI touch screen with error code feedback
★ Precision feed rate and feed pressure valve
