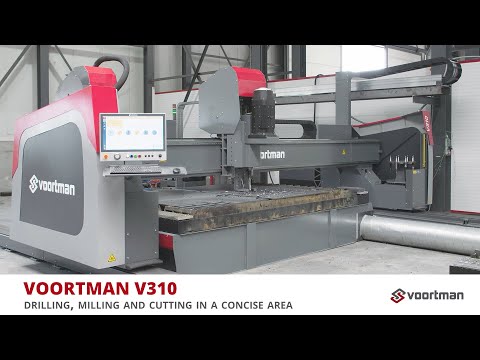

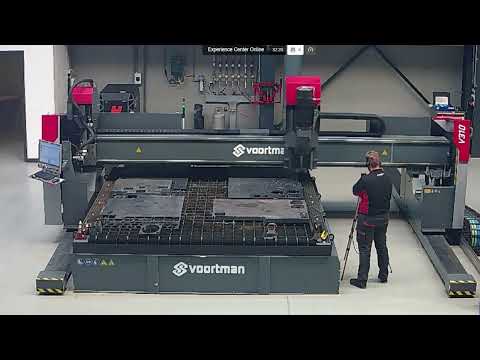

Voortman V310 Plate Processing Machine
Gantry Plate Machines

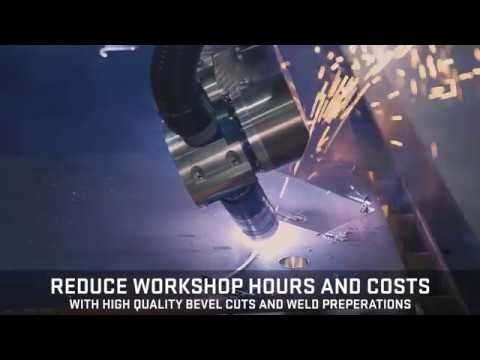

The Voortman V310 fully automates carbide drilling, 3D bevel cutting, and contour milling. It maximizes productivity and uptime, providing valuable progress information through a dashboard. With VACAM Scheduling and VACAM Buffering, unmanned operation is possible. Products from the V310 meet three main objectives: high quality, automation, and cost reduction.
| Effective Cutting Length | 13' - 100' |
| Effective Cutting Width | 6' - 10' |
| Table Type | Down Draft |
| Nesting Software | Sigmanest Techno |
| Layout Marking | Yes |
| Power Source | Hypertherm XPR300 |
| Amps | 300 |
| Number of Oxy-Fuel Torches | 1 |
| Max Material Thickness | 4" |
| Bevel | Yes |
| Number of Spindles | 1 |
| Max Hole Diameter | 1.58" |
| Tool Changer | 8 |
| Control | CNC (VACAM Control) |
Working width: 1,5 - 3* meter, 6 - 10* feet
Working length: 3 - 30* meter, 13 - 100* feet
Cutting speed: 0 - 7.000 mm/min, 0 - 23 f/min
Rapid traverse speed: 20.000 mm/min, 65 f/min
Maximum cutting thickness: (if oxy-fuel is attached) 200 mm, 8 inch
Maximum drilling thickness: (depending on available tool lengths) 200 mm, 8 inch
Marking: YES
Maximum torque: 405 Nm
Drilling speed: 0 - 3,500 rpm (stepless)

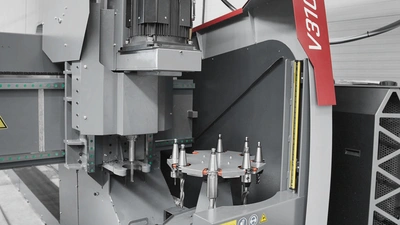

Main tool changer 8 tools
Additional tool changer: 20 tools
Drill holder: SK40
Drill diameter: 5 - 40 mm, 13/64 - 1-37/64 inch
Thread tapping: M6 - M30
Max. number of plasma (bevel) torches: 1
Other optional units: 1 oxy-fuel torch
*Wider width and longer lengths available on request
