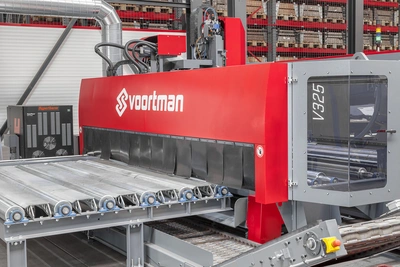

Voortman V325 Pass-Through Plate Processing Machines
Pass-Through Plate MachinesEquipped with a massive drilling head and a 20-tool automatic tool changer, the Voortman V325 is an indispensable plate processing machine for steel construction companies. The V325 efficiently handles a wide range of plate thicknesses, ranging from 6 mm / 1/4” to 100 mm / 4”. By using carbide drilling for holes up to 70 mm, it significantly reduces processing time compared to milling, especially for heavy plates. The machine's 3D plasma bevel and oxy-fuel cutting capabilities ensure precise bevel cuts and weld preparations, facilitating immediate assembly and welding with top-notch quality.

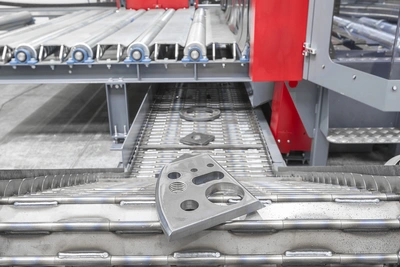

Moreover, the V325 boasts additional features such as bottom-side deburring, Instant Cut Technology, and progressive safety measures, reinforcing Voortman's commitment to pioneering unparalleled technological advancements in the realm of steel processing machinery.
Minimum Plate Thickness | 0.25 in |
Max Plate Thickness | 4" |
Bevel | Yes |
Marking Unit | milling/plasma |
Max Hole Diameter | 0" |
Positioning Weight | 20,000 lb |
Weight | 31,000 lbs |
Operating range: 10 x 20ft, 10 x 30ft, 10 x 40ft
Thickness: 1/4 - 4 in
Positioning weight: 20,000 lbs
Drilling and positioning: Servo motors
Positioning speed X: 98-1/2 f/min
Positioning speed Y: 88-1/2 f/min
Positioning speed Z: 59 f/min
Marking: milling/plasma
Drilling and plasma 3D bevel units: 1
Maximum torque drill head: 450 lbf*ft
Speed drill head: 0 - 3,500 rpm (stepless)

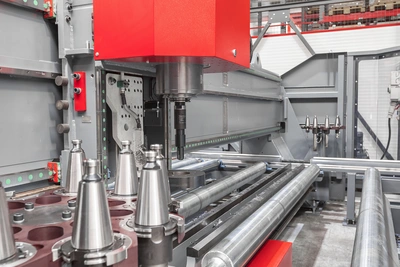

Tool changer: 2 x 10
Drill holder: CAT50
Drill diameter: 13/64 - 2-3/4 inch
Thread tapping: M6 - M36
Plasma: up to 400 (amp)
Oxy-fuel: 1
Machine weight (base): 31,000 lbs
