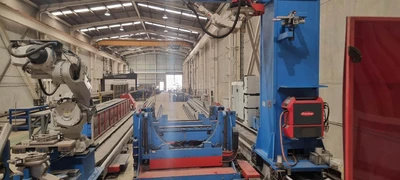

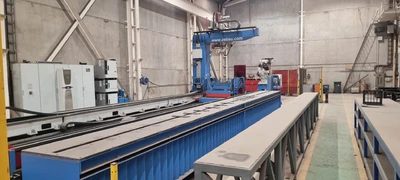

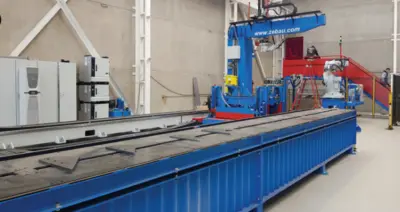

2019 Zeman SBA 1100 Compact

Machine Hours: 1,870 hrs

Additional Notes: The operator platform has been lowered for ease of access; stairs and posts are available to return it to its original height.

No Material Handling

Overall Machine Length: 79' 7 1/8"
Overall Machine Width: 31' 10 1/4"
Overall Machine Height: 19' 8 1/4"

Beam sizes:
Height of beam: 7.87" min - 59" max
Width of beam: 3.94" min - 19.69" max
Length of beam: 118" min - 708.66" max

Beam types:
H-beams: 7.87" min - 59" max
Welded H-beams: Yes
Corrugated SIN beams: Yes
U-profiles: Yes
Rectangular/square tubes: 3.15"x3.15" min - 19.69"x19.69" max
Tapered H-beams: 11.81" min - 55.12" max

Weight limits: max beam weight 13,227.74 Ibs

Dimensions:
Plates: 2"x3.94"x0.20" min - 31.50"x71"x2.36" max
Corner frame application: Yes

Installation area: Closed, dry workshop (recommended 2 cranes; 1x 6 tons, 1x 12tons hoisting capacity)

EURO and Australian SPEC, NOT FOR USA
Power supply: 3x400 VAC; 50/60 Hz
Power consumption: approx. 100kW in case of full productions
Control source: 24 VDC

Capacity:
Maximum add-part weight: 441 lbs
Maximum beam weight: 13,228 lbs

Machine controls:

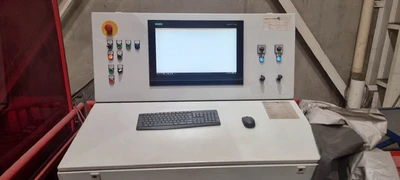

SIMATIC S7 - PLC
SIEMENS PC - User Interface

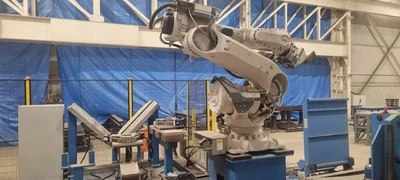

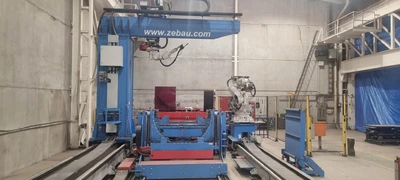

Robots:
Robot application software by ZEMAN

Laser scanner:
Laser scan/detecting by ZEMAN

Prod. data/welding management:
pro-FIT incl. Database by ZEMAN
pro-FIT incl. interface to:
BOCAD, TEKLA, ADVANCE STEEL
pro-FIT includes also welding designation
