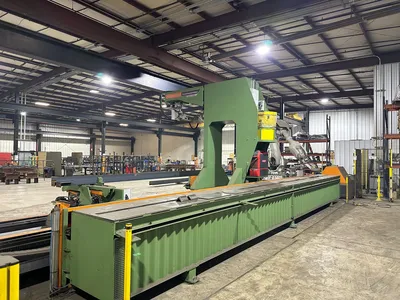

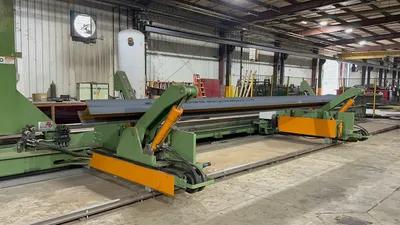

2020 Peddinghaus PeddiAssembler (Powered by Zeman SBA-SR Compact 760), Installed in 2021

Machine Capacity:

Current Machine Hours: 687

-Type of Welding: MAG
-Welding Wire: G3Si1
-Single-Layer Welding Seam Sizes: a3 – a6 (0.12" – 0.24")
-Multi-Layer Welding Seam Sizes: a8 – a15 (0.31" – 0.59")
-Overall Machine Length: 79.4 ft (89.2 ft) [99.1 ft]
-Overall Machine Width: 26.9 ft
-Overall Machine Height: 14.8 ft
-Material Processing: 4 Sides
-Scanning Speed: 9.8 in/sec
-Maximum Material Weight: 11,023 lbs
-Maximum Material Length: 39.4 ft (49.2 ft) [59.1 ft]

Materials Main Profile Dimensions:

H-Beam:
Height: 3.15–15.75 in
Width: 5.91–29.92 in
Length: 3.15–708.66 in

U-Channel:
Height: 3.15–4.33 in
Width: 8.66–15.75 in
Length: 3.15–708.66 in

Rectangular:
Height: 3.15–11.81 in
Width: 3.15–19.69 in
Length: 3.15–708.66 in

Tube:
Height: 3.15–11.81 in
Width: 3.15–11.81 in
Length: 3.15–708.66 in

Part Dimensions:

H-Beam:
Height: 3.15–9.84 in
Width: 3.15–9.84 in
Length: 3.15–19.69 in

U-Channel:
Height: 3.94–15.75 in
Width: 2.76–4.72 in
Length: 3.94–19.69 in

Tube:
Height: 2.76–7.87 in
Width: 2.76–7.87 in
Length: 2.76–19.69 in

Angle:
Height: 2.36–7.09 in
Width: 2.36–7.09 in
Length: 2.36–39.37 in

Plate:
Height: 1.97–31.5 in
Width: 3.94–39.37 in
Length: 1.97–2.36 in

Technical Specifications:

-Pneumatic Supply: 8 bar [116 psi], 50 L/min (400 NL) (1/2") [13 gal/min]
-Shielding Gas Connection: M21-ArC-18/ EN ISO 14175, 5 bar [73 psi], 1.1 m³ (3/8") [39 ft³/h]
-Hydraulic Supply: 160 bar [2,321 psi]
-Hydraulic Tank Capacity: 200 L [52.8 gal], mineral oil HLP

Electrical Specifications:

-Network Connection: 1 Gbit
-Power: 70 kW
-Voltage, Phase, Frequency: 400V, 3 phases + neutral, 50Hz/60Hz
-Full-Load Ampere: 100A
-Back-Up Fuse: Provided by the installer with 125A
-Short Circuit Current Rating of the Protective Device: 65kA/480VAC
-Short Circuit Current: 10kA rms symmetrical, 400V max.
-Full Load Current of the Largest Motor: Approx. 32A
-Control Voltage: 24 VDC
