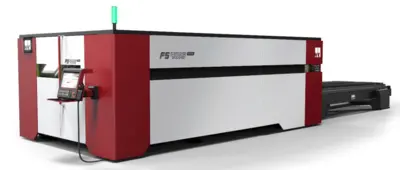

2023 5'x13' HK FALCON-PLUS III 10KW nLIGHT Corona® Fiber Laser

General Specifications:

-10kW nLIGHT Corona® Fiber Laser Resonator
-60” x 157” (5’ x 13’) Flat Sheet Cutting Table with automatic dual pallet changer
-Short Axis Cutting Bridge with synchronized dual servo motor drive system
-21” Touchscreen HK Control System based on SIEMENS Sinumerik One controller
-Rack & Pinion Linear Guide System
-Auto Focus, Non-Contact FIBERCUT-2D Cutting Head with F200 F.L.
-Two (2) Programmable Gas Ports for assist gas (Oxygen, HP Nitrogen)
-480VAC, 3ph Standard
-Laser Chiller (10kW Capacity)

Max Cutting Capacity:

-Mild Steel: 1.250”
-Stainless Steel: 1.000”
-Aluminum: 1.000”

Standard Features:

-CORONA Beam Shaping at the laser resonator
-Sensor Monitoring Systems for the cutting head
-Intuitive HMI Control Screen and functions for easy operation
-Light-weight Honeycomb Style Cutting Bridge
-Air-Conditioned Electrical Cabinet
-Edge Detection & Auto Axis Adjustment
-Multi-Zone Auto Duct Damper System
-80GB HDD Memory Capacity

Automated Material Handling System:
-Inline Smart-Cell : one loading/ one unloading in compact layout
-Sideload Smart-Cell : one load/ one unloading with side-loading layout
-Smart-Tower : 8-shelf full automated tower automation system
