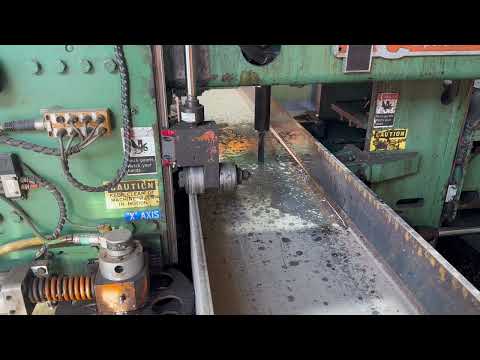

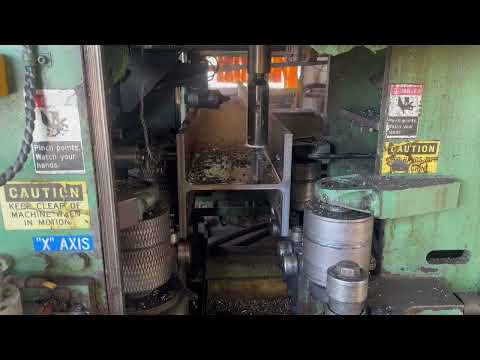

2007 Peddinghaus PCD1100 Beam Drill Line and Meba 1100DG Band Saw with Material Handling

2007 Peddinghaus PCD1100 Beam Drill Line and Meba 1100DG Band Saw with Material Handling

Have one to sell?
1 (714) 253-4707
used@jpsint.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Beam Drill / Saw Lines
Manufacturer:
PEDDINGHAUS
Model:
PCD 1100
Year:
2007
Stock #:
1268
Status:
For Sale

Description

Available Immediately. This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.

Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.

Max Profile Width43.31"1,100.1 mm
Minimum Profile Width3"76.2 mm
Max Profile Height18"457.2 mm
Minimum Profile Height0.75"19.05 mm
Number of Spindles33
Spindle Power13.5 hp10.1 kW
Drill Tooling Type#4 Morse Taper#4 Morse Taper
Max Hole Size1-1/16"1-1/16"
Saw CapacityRefer to the spec sheet belowRefer to the spec sheet below
Saw Band Speed49 – 492 ft/min49 – 492 ft/min
Saw Band Size366" x 2.1" x 0.06"366" x 2.1" x 0.06"
In-feed Conveyors75'22,860 mm
In-feed Transfers39.6'12,070 mm
Out-Feed Conveyors60'18,288 mm
Out-Feed Transfers10.6'3,230.9 mm
Power Requirements400V, 3ph, 60Hz400V, 3ph, 60Hz
ControlCNCCNC
Weight10,500 Ibs10,500 Ibs

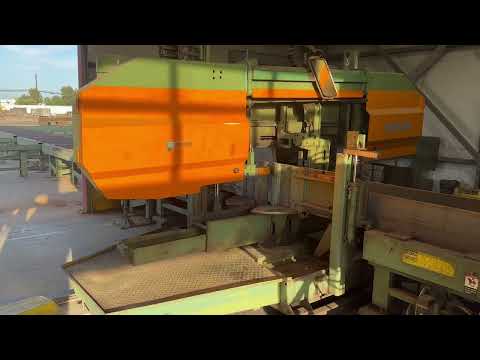

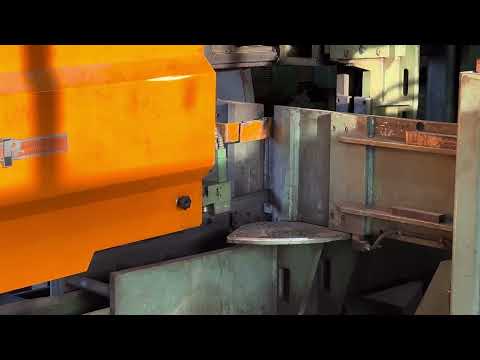

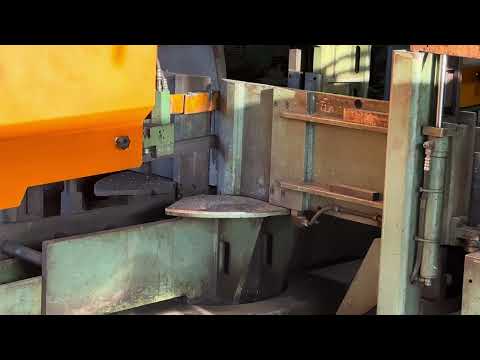

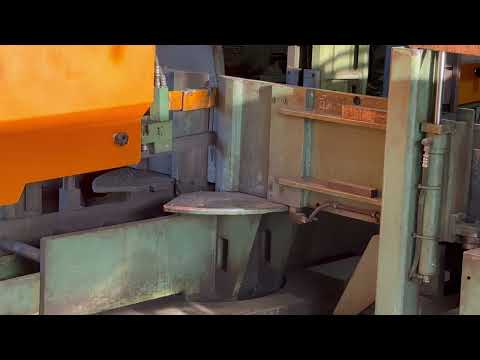

Meba 1100DG Saw Cutting Capacities:

30° Left: Ø 16.5" / 16.5" x 17"
45° Left: Ø 20" / 27.5" x 17"
90°: Ø 20" / 43" x 17"
45° Right: Ø 20" / 27.5" x 17"
30° Right: Ø 17.7" / 17.7" x 17"
Motor Power: 12 HP
Saw Blade: 366" x 2.1" x 0.06"
Saw Blade Speed: 49 – 492 ft/min
Shortest Cuttable Diameter: Ø 0.39"
Dimensions (L x W x H): 88.5" x 173" x 90.5"
Working Height: 24.8"
Weight: 11,990 lbs

Material Handling Included:
Infeed rollers 75’
(4x) Infeed transfer total length 39’ 6”
Outfeed Rollers 61’
(3x) Outfeed transfer length 10’ 6”

Stenographic and Clerical Errors are Subject to Correction

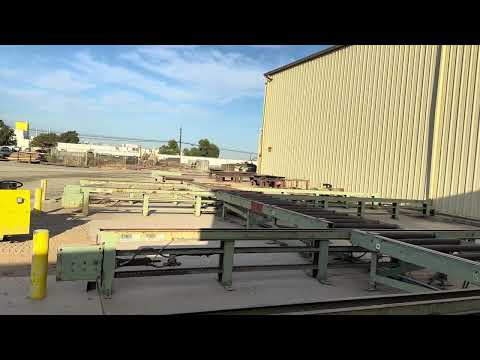

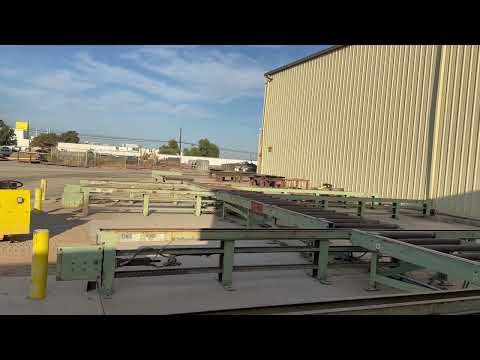

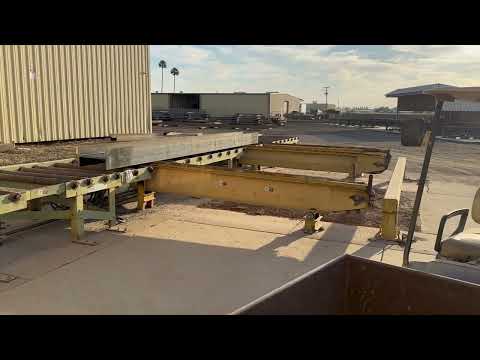

Infeed & Outfeed Conveyor and Infeed Cross-transfers (Material Handling)
