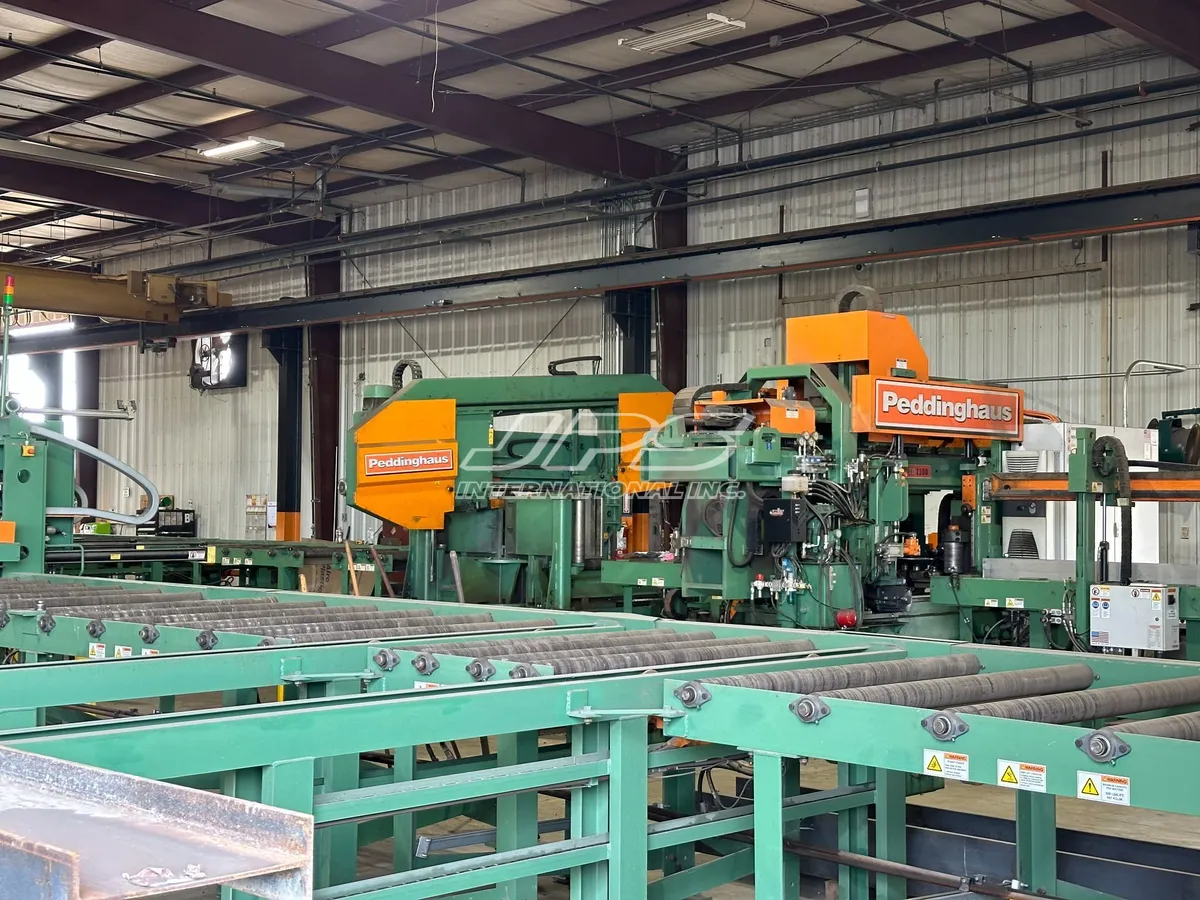

2019 Peddinghaus PCD 1100/3C ATC & 1250 DG Beam Drill Line with Material Handling

2019 Peddinghaus PCD 1100/3C ATC & 1250 DG Beam Drill Line with Material Handling

Have one to sell?
1 (714) 253-4707
used@jpsint.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Beam Drill / Saw Lines
Manufacturer:
PEDDINGHAUS
Model:
PCD ADVANTAGE 2 + DG 1250 SAW
Year:
2019
Stock #:
1274
Status:
For Sale

Description

COMING SOON.

This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.

Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.

Max Profile Width43.3"1,099.8 mm
Minimum Profile Width2"50.8 mm
Max Profile Height18"457.2 mm
Minimum Profile Height34"863.6 mm
Number of Spindles3 Spindles 1-Per Drilling Axis3 Spindles 1-Per Drilling Axis
Spindle Power25 hp18.6 kW
Spindle Speed0 rpm0 RPM
Machine Hours1158711587
ControlCNC (Siemens CNC Control)CNC (Siemens CNC Control)

Specifications DG-1250 Double Miter Band Saw :

Maximum 90° Cut Dimensions: 49” × 20”
Maximum 45° Cut Dimensions: 31” × 20”
Maximum 30° Cut Dimensions: 21” × 20”
Maximum 90° Round Dimensions: 24”
Drive Motor: 20 HP
Saw Blade: 394” x 2.64” x .063”
Machine Weight: 14,660 lbs

Stenographic and Clerical Errors are Subject to Correction

39'-9" on the outfeed transfers
64' of conveyor from the face of the drill to the end of the outfeed conveyor
23' from the back of the drill to a wall on the conveyors
43'-6" conveyor outside
25' transfer outside
