2017 Voortman V808 Complete Robotic Coper with Material Handling

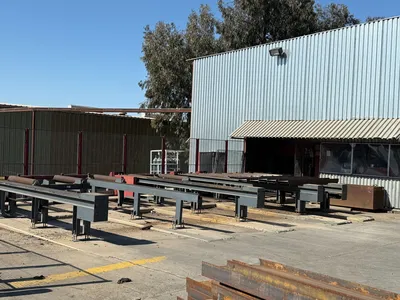

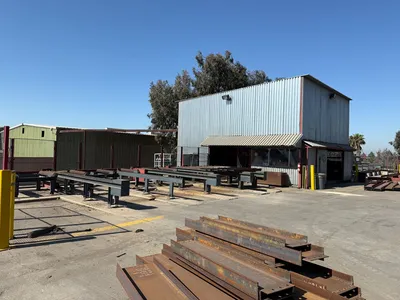

One-Way Infeed Cross Transport (CT1):
-Mechanical drag-dogs
-16 ft length, 6 supports
-Fully loaded transport capacity, up to 500 lbs/ft

Infeed Roller Conveyor (RC1):

-50” width, 6-1/4” roll diameter
-Transports profiles up to 61 ft (min. 8-1/4 ft)
-Max load: 500 lbs/ft

V808 Coping Machine: Eight-axis Panasonic robot

Telescopic Roller Conveyor (Outfeed Side): 1 unit, automatic outfeed up to 4-1/2 ft
Plasma Cutting Unit: Hypertherm HPR260XD, automatic gas console
-Oxy-Fuel Cutting Unit: 1 unit
-Fume Extraction Unit DFPRO 8
-Switch Panel Air Conditioning

Outfeed Roller Conveyor (RC2):
-50” width, 6-1/4” roll diameter
-Transports profiles up to 41 ft (min. 4-1/2 ft)
-Max load: 500 lbs/ft

One-Way Outfeed Cross Transport (CT2):
-Mechanical drag-dogs
-16 ft length, 4 supports
-Fully loaded transport capacity, up to 500 lbs/ft

Hardware & Software:
-VACAM ‘Machine Edition’ & ‘Office Edition’
-VACAD Editor, Layout Marking Software

Safety Devices:
-Interlocking door for machine housing
-Safety fencing, light curtain
-Outdoor Light Curtain (2 units)
