2023 Vernon Tool CNC 5‑Axis Plasma Pipe Cutter – 40' Capacity, HD Beveling, FineLine 300HD
Have one to sell?
ConditionUsed
1 available
Available Immediately. This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.
Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.
Machine hours: more or less 500 hours
Machine Bed Specifications: Model 0224
Pipe Diameter: 2"–24"
Maximum Weight Per Foot: 250 lb/ft (113 kg/m)
Maximum Total Load: 5,000 lb (2,250 kg)
Maximum Cutting Speed: 200 ipm (5 m/min)
Rotation Speed: 0–200 ipm (0–5 m/min)
Conveyor Rotation Speed: Up to 50 RPM

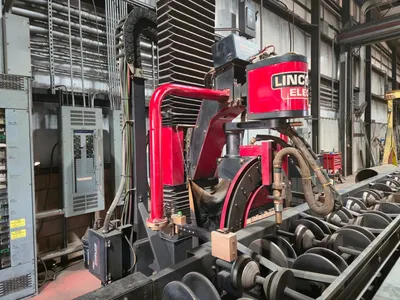

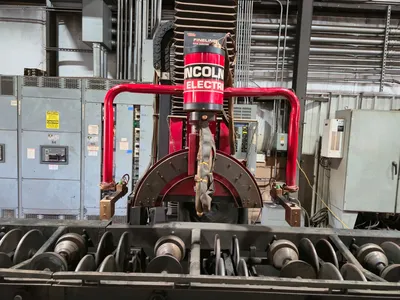

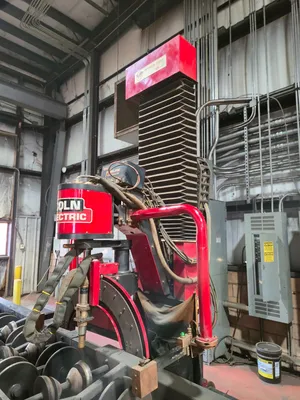

Profiler Specifications:
Axes: 5
Torch Travel: Up to 41 ft (12.5 m)
Torch Angle: ±70° (Oxy) / ±45° (Plasma)
Out-of-Round Compensation: Dual analog sensors
Cutting Angle Range: 1°–179°
5-Axis Head Rotation: ±360°

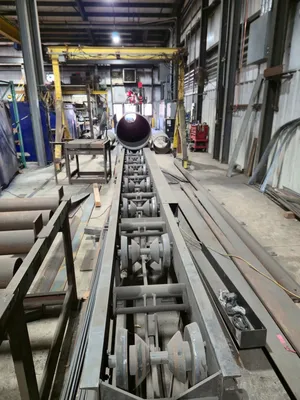

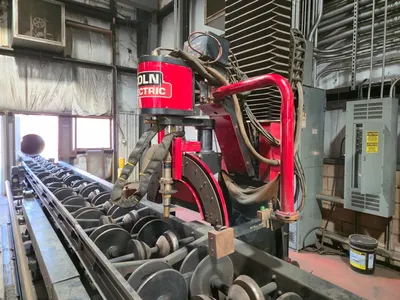

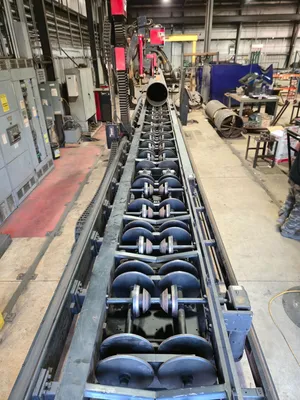

40’ machine bed w/5 axis profiler model # 0224, year 2023
Infeed and outfeed 40’ each/ non-tilting
Harris Oxy Fuel cutting package included

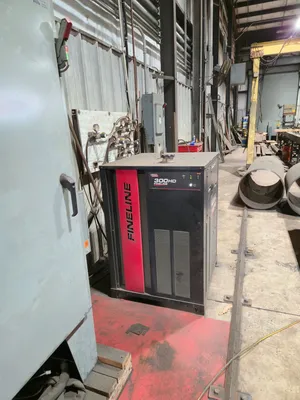

Lincoln Electric Fine Line 300 HD plasma
(1) seat Pype Server offline CAD/ CAM
Total hours: +/- 500 hours
