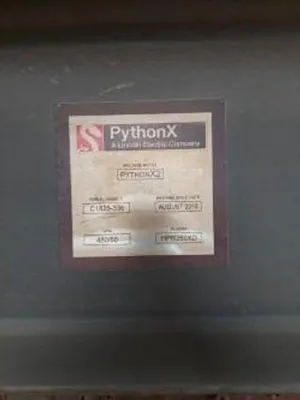

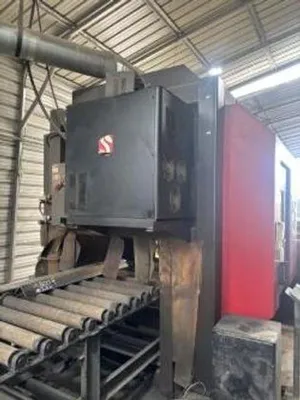

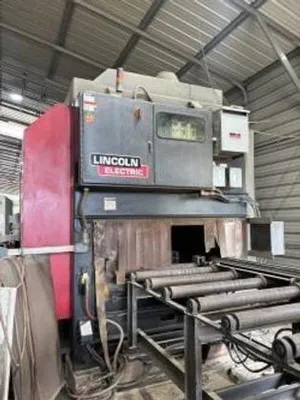

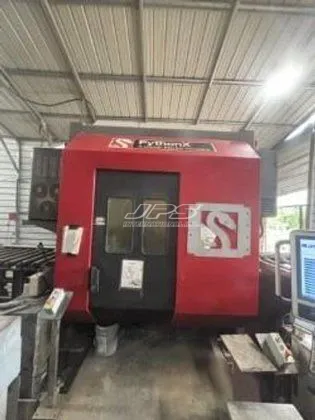

2018 Lincoln Electric Python X2 with Hypertherm XPR300

This is a right-to-left system

Material Capacity Specifications:

Strip/Plate Width:
- Max: 36 in. (914 mm)
- Min: 4 in. (101 mm)
Strip/Plate Thickness:
- Max: 1.25 in. (32 mm)
- Min: 0.25 in. (6.3 mm)

Beam Dimensions:
- Width: 4 in. to 36 in.
- Height: 4 in. to 16 in.

Channel Width:
- Range: 3 in. to 36 in.

Angle Capacity:
- Max: 8 in. x 8 in.
- Min: 2 in. x 2 in.

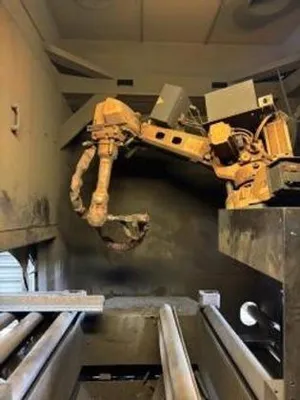

4-Sided Cutting Capability:
Includes bottom-side cutting for complete part profiling

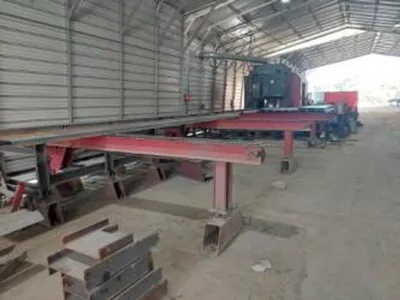

Material Handling:
- Infeed Conveyor: 75 feet
- Outfeed Conveyor: 45 feet
- Cross-Feed Transfers
- Four (4) on infeed – 13 ft. 6 in. each
- Four (4) on outfeed – 13 ft. 6 in. each

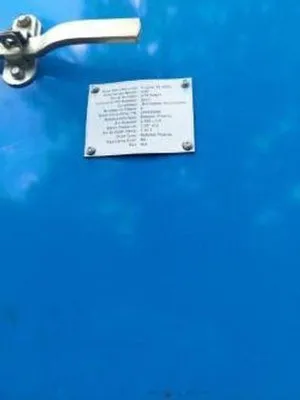

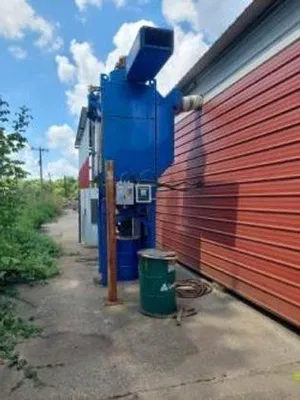

Dust Collector: Yes

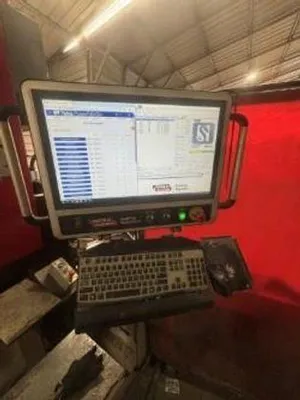

Control System: Python X CNC with touchscreen interface
